Aperçu /Produits/Machines à béton/New wet concrete shotcrete machine four wheel steering price with telescopic robotic arm

New wet concrete shotcrete machine four wheel steering price with telescopic robotic arm

1.0 Pieces
MOQ
New wet concrete shotcrete machine four wheel steering price with telescopic robotic arm
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Energy & Mining
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Motor, Pressure vessel, Gear, Pump
Condition: New
Max. Conveying Distance: 30m
Max Aggregate Size: 16mm
Hose Inner Diameter: 50 mm
Air Consumption: 10m3/min
Voltage: 220v/380v
Power: 93kw/2200rpm
Dimension(L*W*H): 8600*2440*3500mm
Weight: 16t
Warranty: 1 Year
UNIQUE SELLING POINT: Wireless remote control operation
Product name:: Wet Spray Manipulator
Keywords: Wet Mix Shoecrete Machine
Drive mode: Hydraulic four-wheel drive
Walking style: Four-wheel steering, diagonal, horoscope, in-situ Turn to
Axle chassis system: Dana / Carraro, Italy
Minimum turning radius: 2.2m inside, 6m outside
Output: 24 m3/h
Concrete pumping pressure: 8MPa
Applicable materials: Wet Concrete Beton
Application: Automatic Spraying Concrete
After Warranty Service: Online support, Spare parts
Local Service Location: None
After-sales Service Provided: Video technical support, Online support
Informations de base
Conditions de paiement et expédition
Packaging Details: export packing
Supply Ability: 10 Piece/Pieces per Month
Description de produit
Product Overview

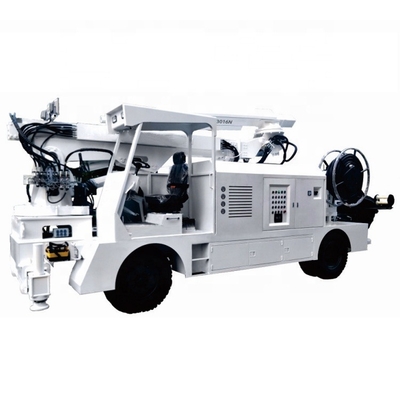

Mobile robot wet concrete spraying machine

As a concrete wet spraying vehicle with a length of 8.6m, a width of 2.4m and a height of 3.5m, it can meet the support of tunnels, roadways, slopes, culverts, mines and other concrete spray anchors. In operation, the vehicle has some characteristics, such as flexibility , The concrete spraying speed is fast, the rebound rate is low, the operation is simple, and the labor is saved. The equipment is a flexible, reliable and cost-effective concrete wet spraying robot
Robot shotcrete Spraying Machine advantages are as below:
Variable Main Hydraulic Pump
Spraying capacity continuously adjustable (stepless speed change )
Variable Plunger Accelerator Pump
Accelerator feeding quantity continuously adjustable, Stepless adjust in range 0-9% .
Placing boom control valve
Placing boom controlling valve is proportional valve, mild and flexible.
Brand Engine
Torque, Powerful, Long life, Easier in maintenance.
, Separated 2 parts, The trailer shotcrete Pump could be use separately.
The mobile robot spraying machine could work as a trailer, the behind shortcrete pump could spraying jobs separately.
Hydraulic fittings.
ALFAGOMMA Fittings Italy or Gates fittings U.S.
Cordless remote control
Imported cordless remote control, reliable, stable signal, easier operation.
PRODUCT SPECIFICATIONS
